ML-100 Round Pipe Finishing

Straight and curved round tube finishing up to Ø114mm with maximum flexibility and consistency.

ML100 round pipe finishing machine is the perfect choice for finishing and polishing round, oval and elliptical tubes.

The ML planetary system enables the work without rotating the tube, delivering the best results on bent and curved tubes as well.

The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and high productive finishing quality.

Any finish is possible as you can operate with near any abrasive belt needed. From a 60 grit fast pass to remove rust to a fine 1000 grit for ornamental tube its all possible in one easy to use reliable machine.

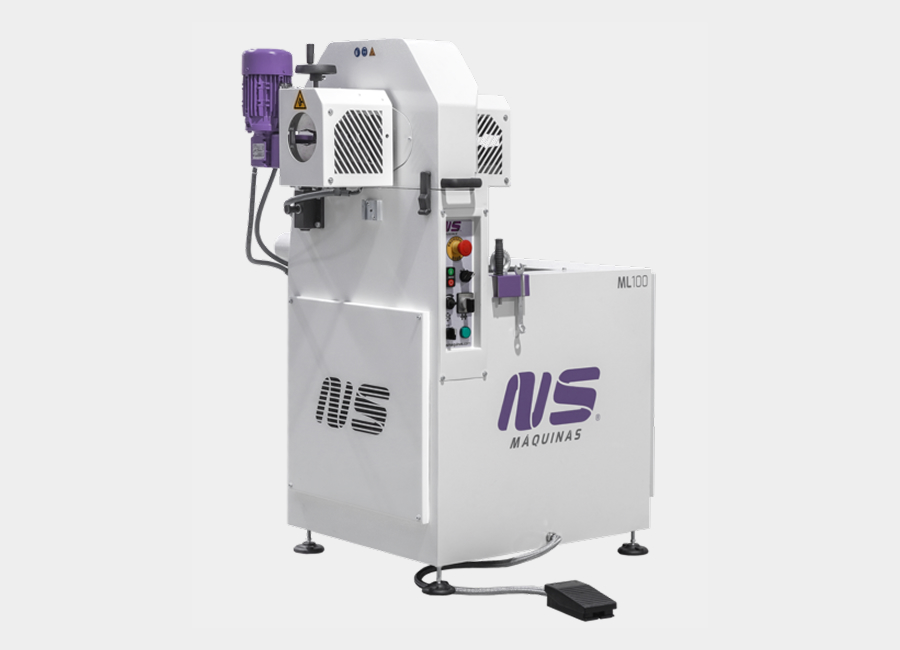

ML100 Round Tube Finishing Machine Original Product

Specifications

Working capacity Ø10 - Ø114 mm
No. finishing stations 1
Abrasive belts motor 3 kw
Wheel motor 1.5 kw
Abrasive belts dimensions 2 x 940 x 50 mm
Feeding speed 1-5 m/m
Dimensions 750 x 1000 x 1300 mm
Weight (approx) 250 kg
Minimum Bend Chart

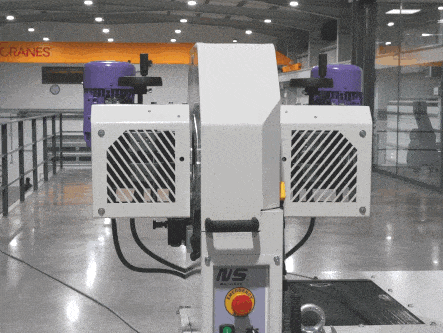

grinding-machine-set-up-ML100

Demonstration VIdeos

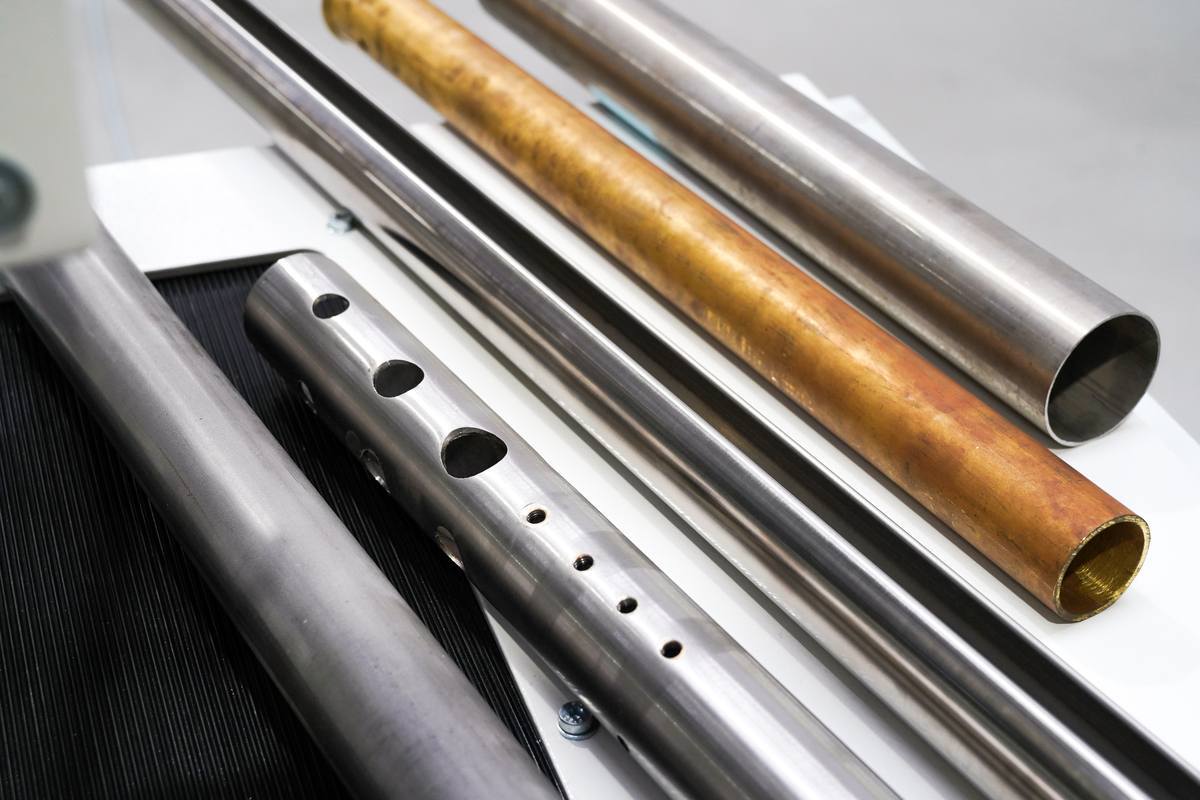

Different-tubes-and-pipes-for-grinding-and-polishing-on-ML100

Round Tube Finishing Machine – ML100 Demonstrational Video

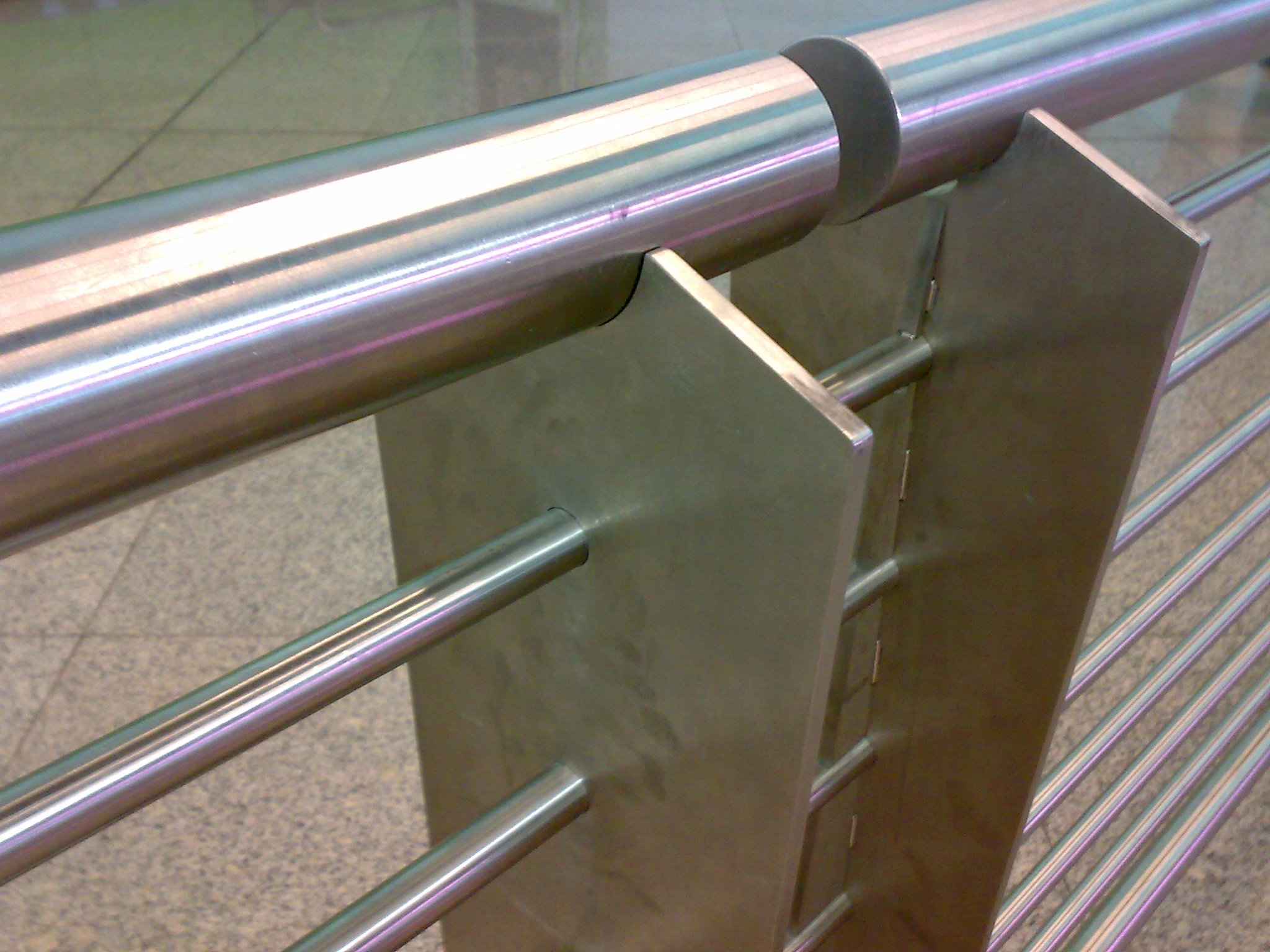

G10-1024x768

Sport Bar and Bull Bar – Tube polishing Demonstrational Video

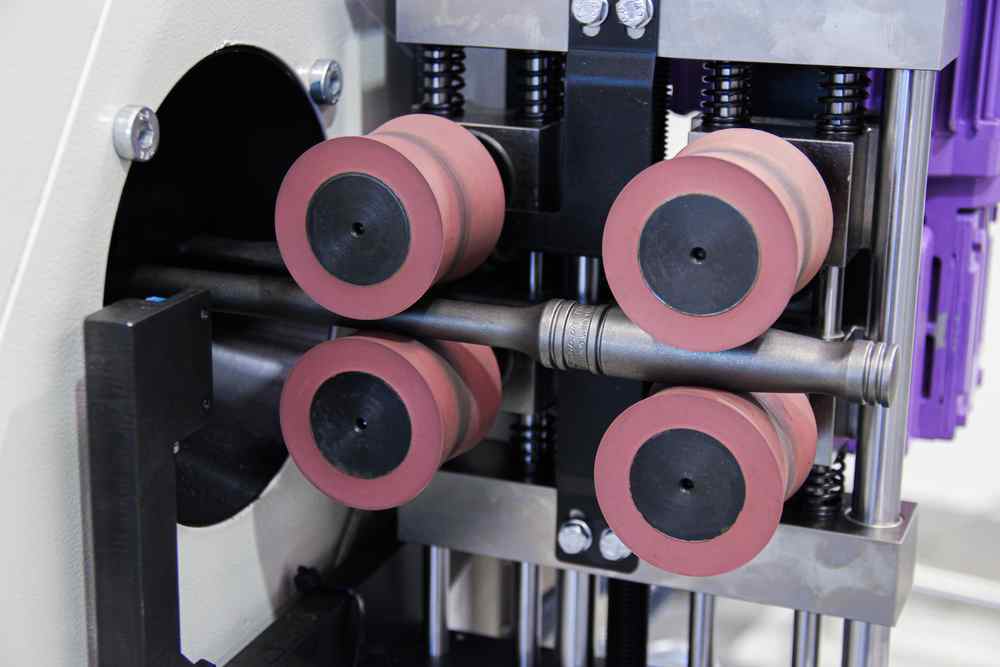

irregular-tubular-feeding-system-for-pipe-polishing-machine

Feeding System for Irregular Surfaces – Tube Finishing Machine

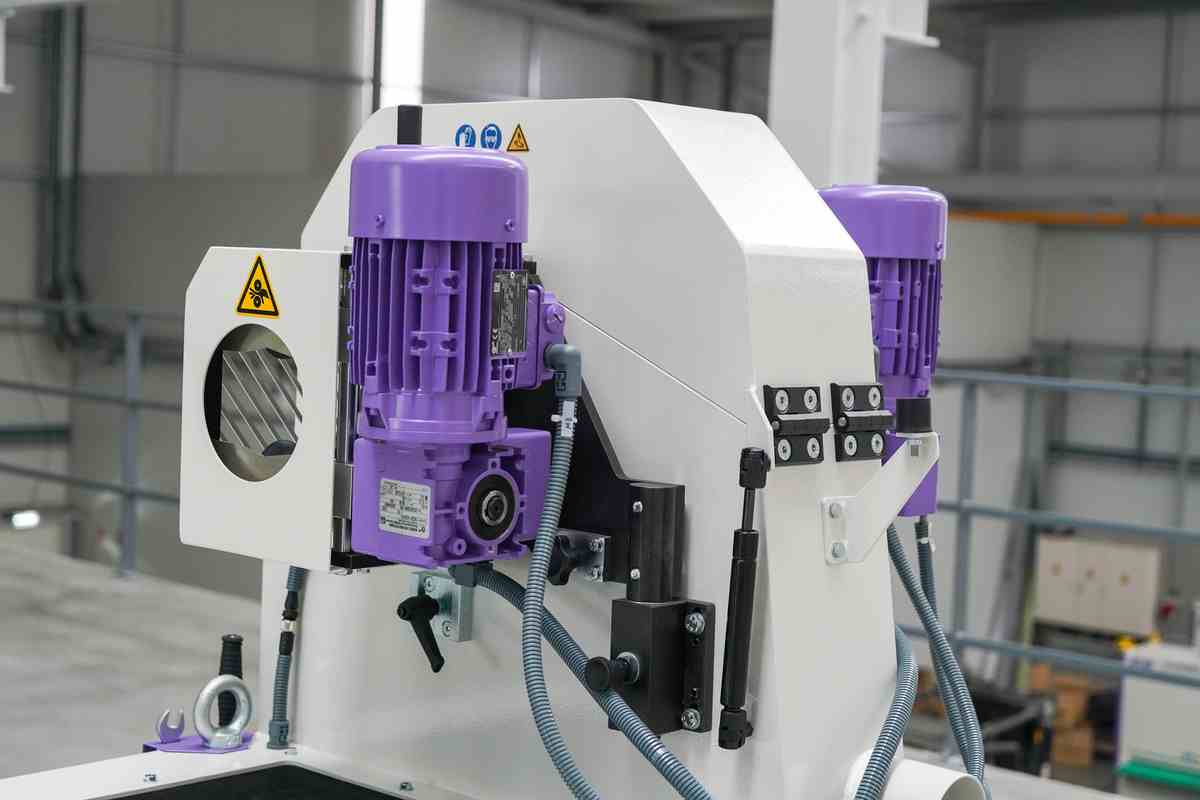

pipe-polishing-automatic-feeding-system

Touchscreen for Program Saving – Tube polishing machine Demonstrational Video

Gallery

diameter-adjustment-on-ML100-tube-polishing-machine
pipe-polishing-automatic-feeding-system

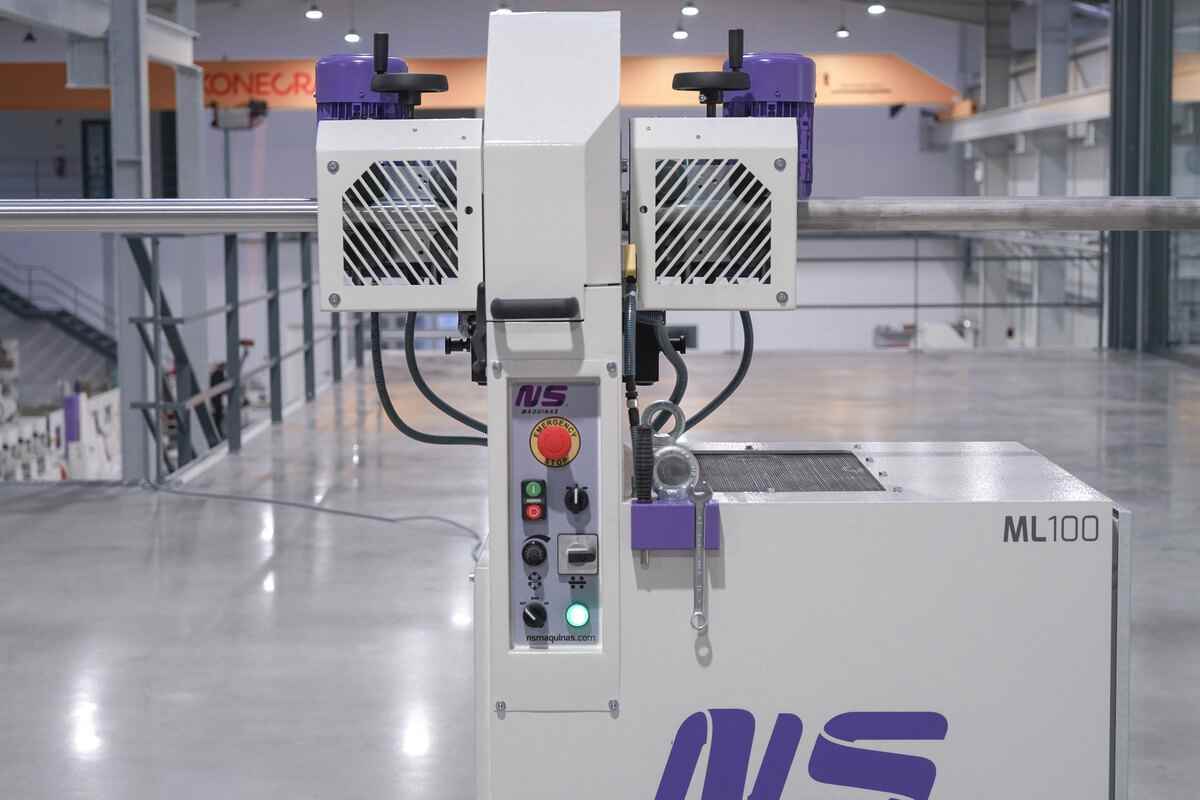

Pipe-Finishing-Machine-operation-and-control-panel

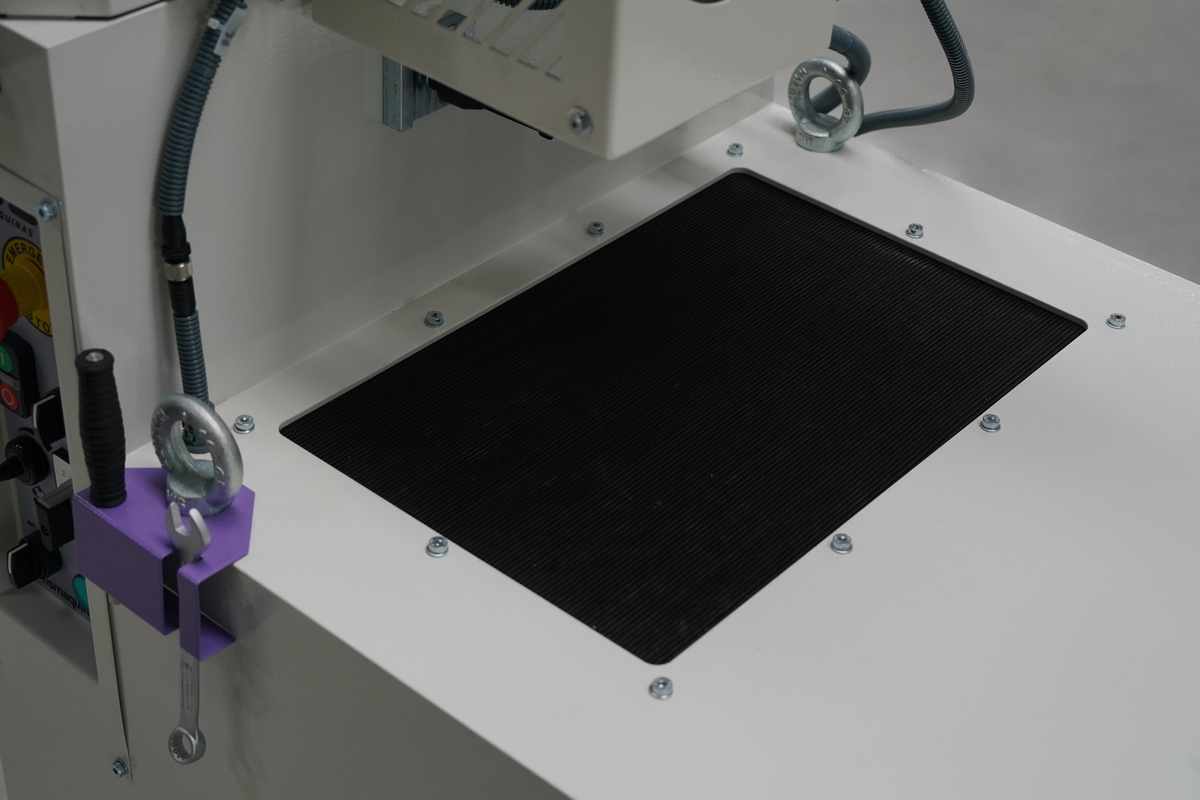

rubber-surface-for-tools-surface-finishing-machine

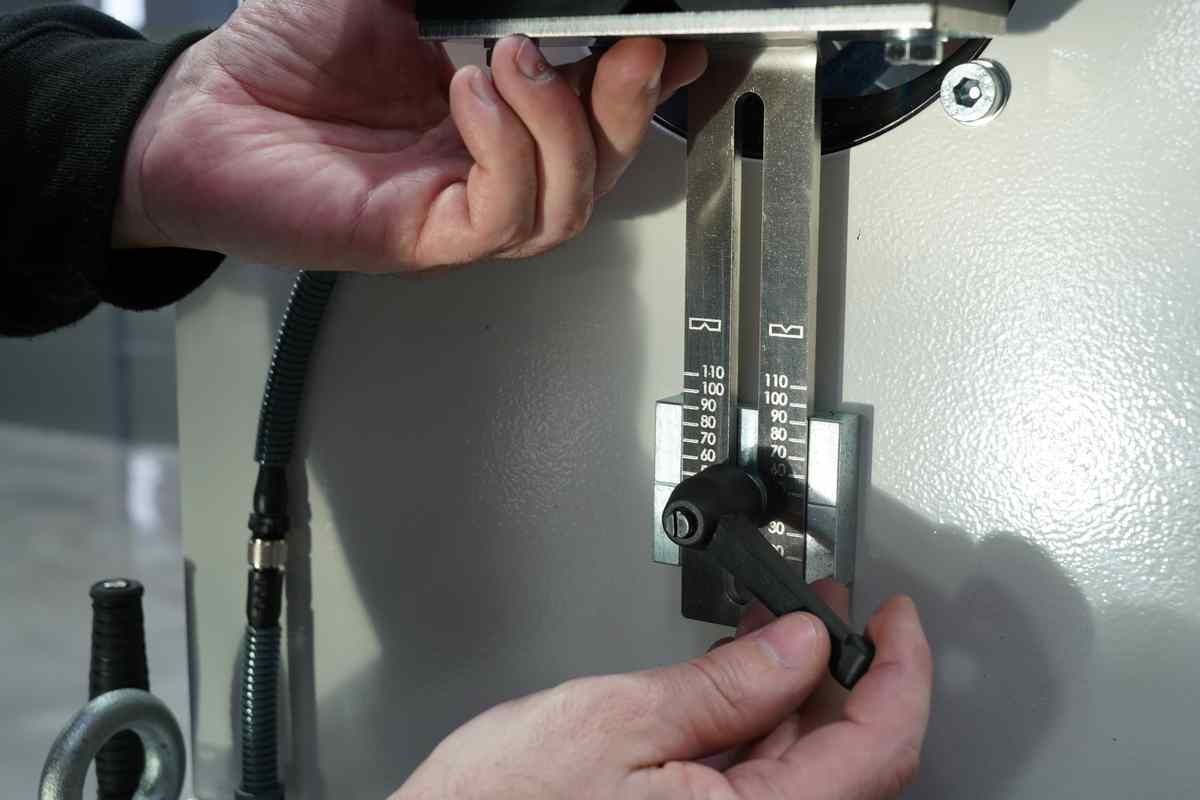

support-for-curved-tubes-operation

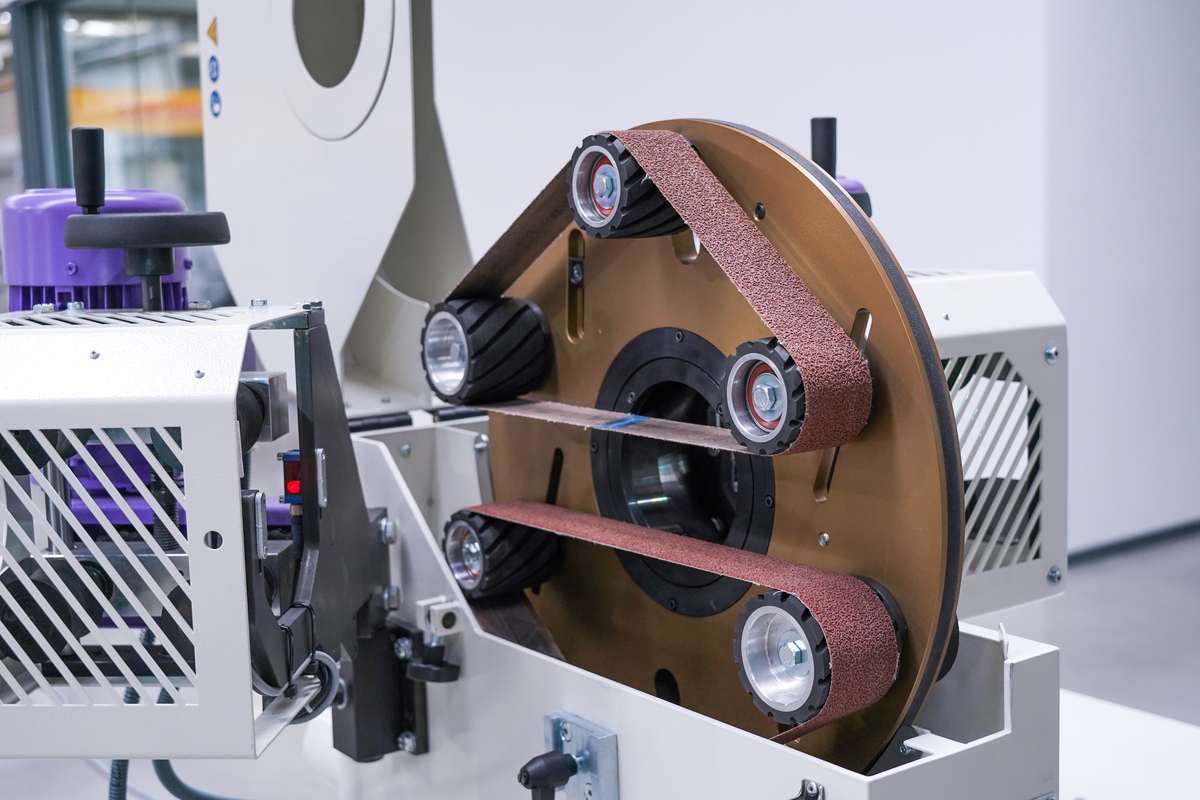

abrasive-belt-on-wheel-for-round-tube-grinding

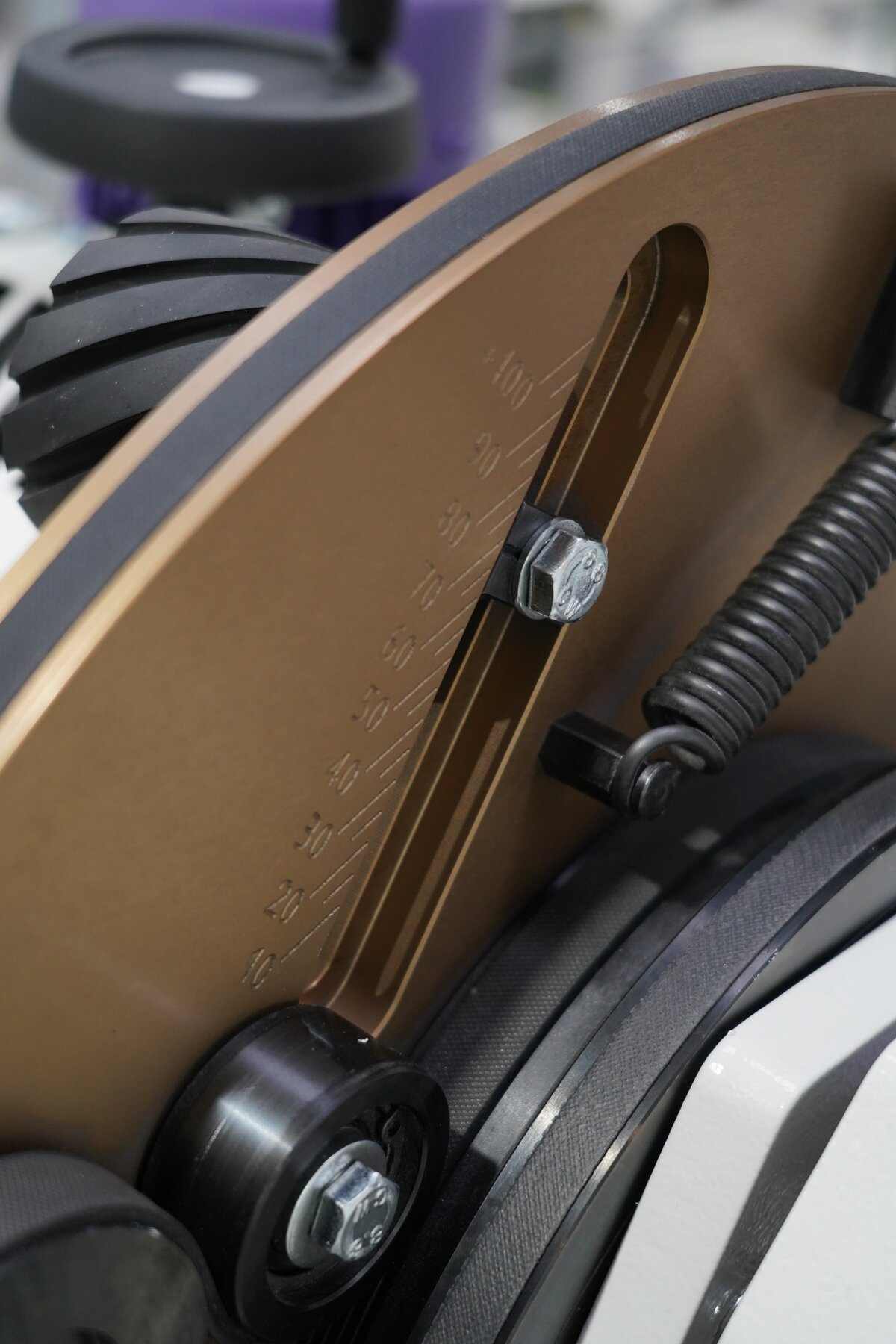

Diameter-Marks-pipe-polishing-machine
G10-1024x768
