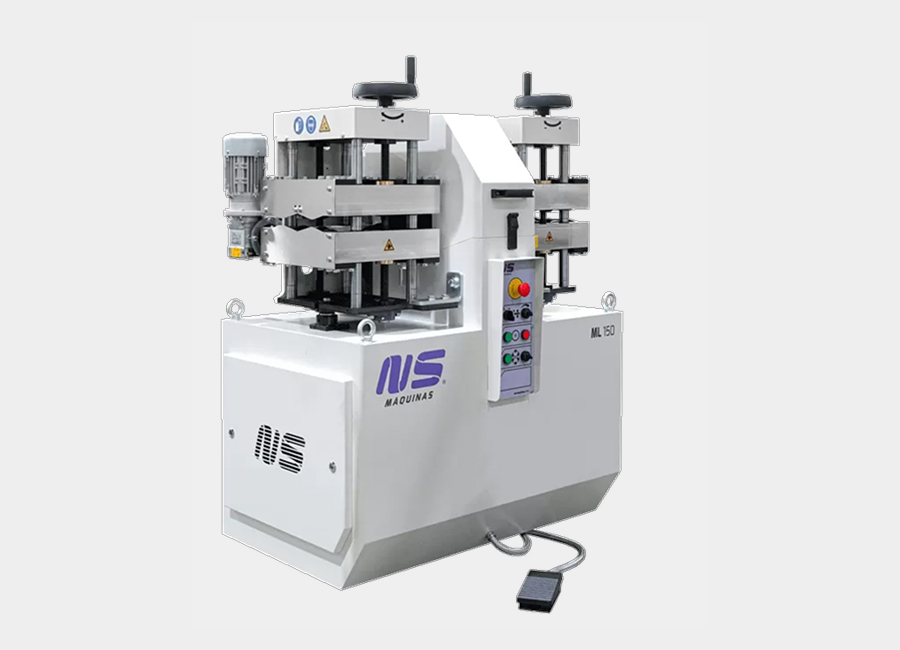

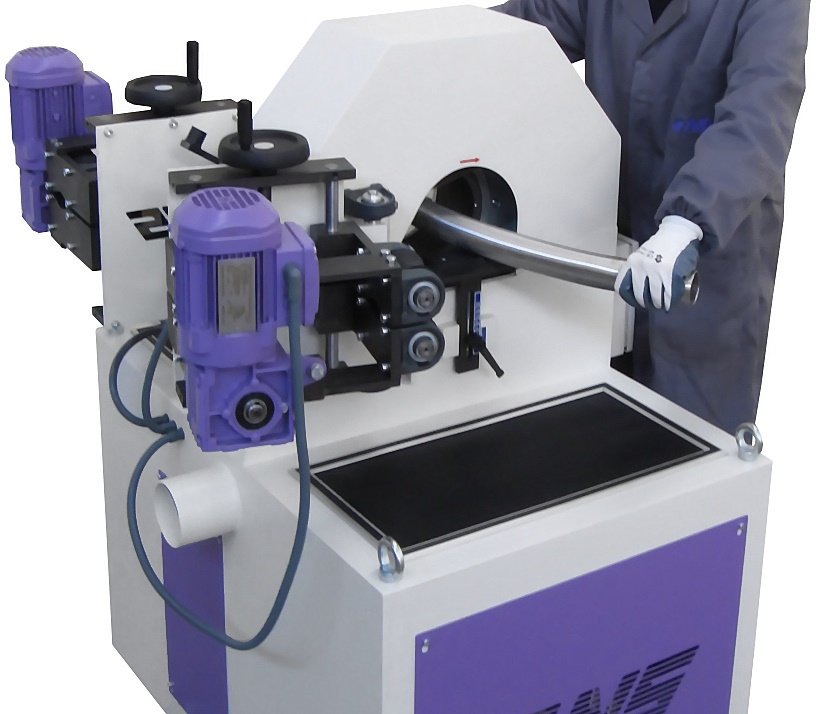

ML150 round tube finishing machine finishes and polishes round, oval and elliptical tubes, straight or curved, up to Ø150mm.
The ML planetary system enables the work without rotating the tube, delivering the best results on bent and curved tubes as well.
The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and high productive finishing quality.
Specifications
| ML150 | |
| Working capacity (Ø mm) | 20-150 |
| No. Stations | 1 |
| Abrasive belt dimensions (mm) | (2x) 50x1100 |
| Abrasive belt speed (m/s) | 10-25 |
| Feeding speed (m/m) | 1-4 |
| Abrasive belts motor (kW) | 5.5 |
| Wheel motor (kW) | 2.2 |
| Feeding motor (kW) | (2x) 0.18 |
| Total power (kW) | 8 |
| Consumption (A) | 18 |
| Dust extraction connection (Ømm) | 100 |
| Dimensions (mm) | 1100x950x1350 |
| Weight (kg) | 480 |
